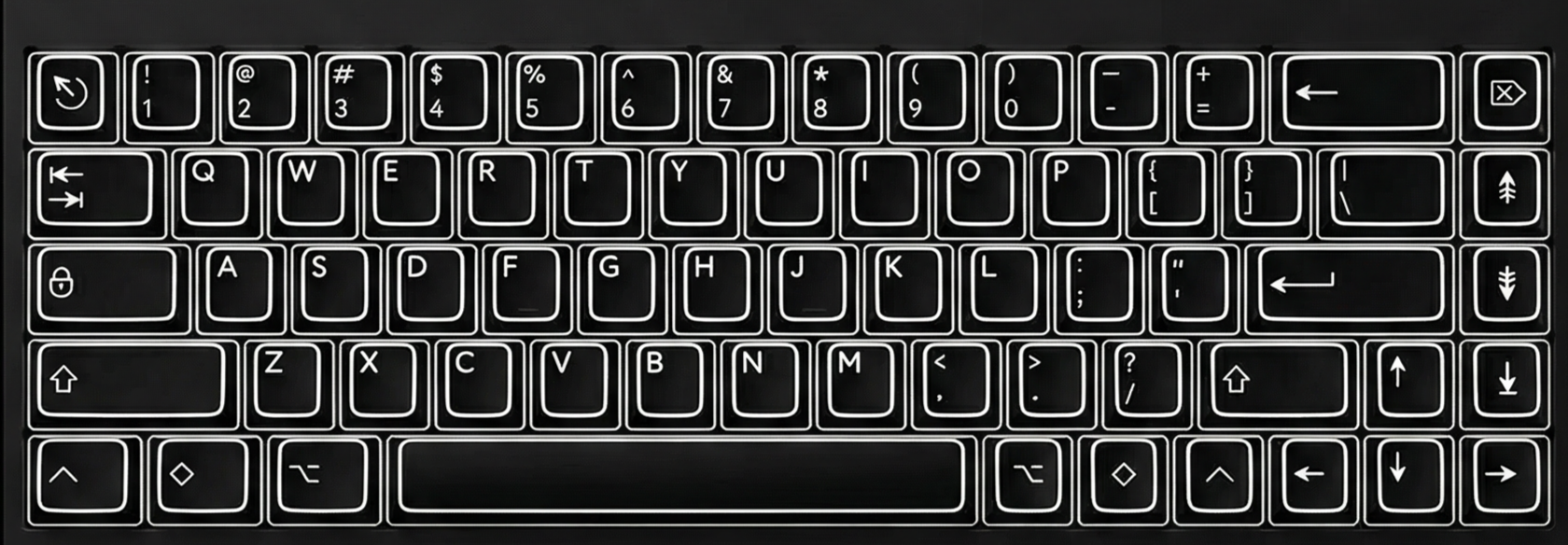

KBDfans Tofu65 Keyboard Shortcuts
KBDfans Tofu65 Lighting
Toggle RGB: Fn + Tab — Turn all RGB lighting on or off. Controls both per-key LEDs and underglow.
Next RGB Effect: Fn + Q — Cycle forward through QMK RGB effects (Solid, Breathing, Cycle All, Rainbow Swirl, etc.).
Previous RGB Effect: Fn + A — Cycle backward through QMK RGB effects.
Increase Brightness: Fn + W — Increase the RGB backlight brightness.
Decrease Brightness: Fn + S — Decrease the RGB backlight brightness.
Increase Hue: Fn + E — Shift the RGB color hue forward.
Decrease Hue: Fn + D — Shift the RGB color hue backward.
Increase Saturation: Fn + R — Increase the RGB color saturation.
Decrease Saturation: Fn + F — Decrease the RGB color saturation.
Increase Effect Speed: Fn + T — Speed up the current RGB animation.
Decrease Effect Speed: Fn + G — Slow down the current RGB animation.
KBDfans Tofu65 Fn Layer
F1: Fn + 1 — Output F1 key. Number row maps to F1-F12 in the Fn layer.
F2: Fn + 2 — Output F2 key.
F3: Fn + 3 — Output F3 key.
F4: Fn + 4 — Output F4 key.
F5: Fn + 5 — Output F5 key.
F6: Fn + 6 — Output F6 key.
F7: Fn + 7 — Output F7 key.
F8: Fn + 8 — Output F8 key.
F9: Fn + 9 — Output F9 key.
F10: Fn + 0 — Output F10 key.
F11: Fn + - — Output F11 key.
F12: Fn + = — Output F12 key.
KBDfans Tofu65 Navigation (Fn Layer)
Page Up: Fn + Up — Output Page Up. Arrow Up becomes Page Up in the Fn layer.
Page Down: Fn + Down — Output Page Down. Arrow Down becomes Page Down in the Fn layer.
Home: Fn + Left — Output Home. Arrow Left becomes Home in the Fn layer.
End: Fn + Right — Output End. Arrow Right becomes End in the Fn layer.
Delete: Fn + Backspace — Output Delete key. Backspace becomes Delete in the Fn layer.
Insert: Fn + \ — Output Insert key. Backslash becomes Insert in the Fn layer.
Print Screen: Fn + P — Output Print Screen key for screenshots.
KBDfans Tofu65 Media (Fn Layer)
Volume Up: Fn + ] — Increase system volume.
Volume Down: Fn + [ — Decrease system volume.
Mute: Fn + \ — Mute/unmute system audio.
KBDfans Tofu65 Special
Factory Reset (EEPROM Clear): Fn + Backspace (hold 3s) or hold Esc on plug-in — Clear EEPROM to reset all VIA customizations and return to default keymap. Alternatively, hold Esc while plugging in the USB cable to enter bootloader and reflash defaults.
Enter Bootloader (Firmware Flash): Physical reset button (underside of PCB) — Press the physical reset button on the underside of the DZ65RGB PCB to enter bootloader mode for firmware flashing. Use QMK Toolbox to flash .hex files.
VIA Key Remapping: Connect USB → open VIA — Connect via USB and open VIA (usevia.app) to customize key mappings on all layers. The DZ65RGB PCB has VIA support enabled by default. Changes save to onboard EEPROM.
QMK Firmware Flash: QMK Toolbox → Flash — For advanced customization, compile a custom QMK firmware and flash it using QMK Toolbox. Source code is at qmk_firmware/keyboards/dztech/dz65rgb/. Requires entering bootloader mode first.
