How to analog gamepad emulation on Wooting 60 HE?

Wootility → Gamepad Mode. Map WASD or any keys to analog gamepad stick axes. Press lightly for slow movement, press harder for full speed. Emulates Xbox controller left/right stick.

How to switch profile on Wooting 60 HE?

Fn + 1/2/3/4. Switch between up to 4 onboard profiles. Each profile stores independent key mappings, actuation points, Rapid Trigger settings, and RGB configurations.

How to f1 on Wooting 60 HE?

Fn + 1. Output F1 key. The 60% layout has no dedicated F-row; Fn + number row provides F1-F12.

How to toggle rgb on Wooting 60 HE?

Fn + Backslash. Turn the RGB backlight on or off.

How to factory reset on Wooting 60 HE?

Wootility → Reset to Default. Reset all keyboard settings to factory defaults through Wootility software. Erases all profiles, custom actuation points, and Rapid Trigger configurations.

Keymatrix.dev

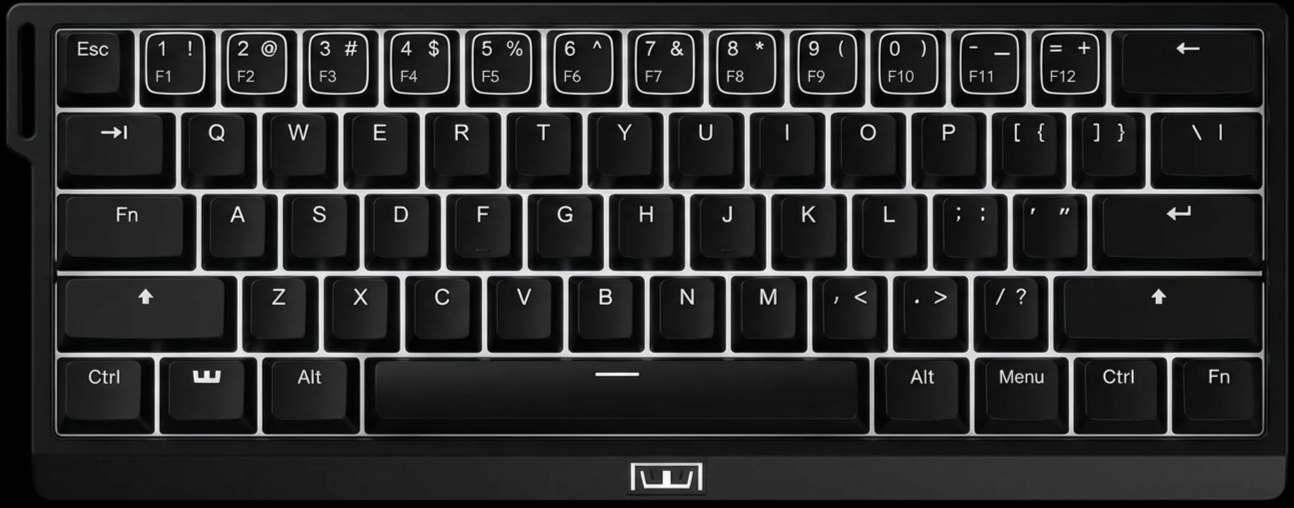

Name: Wooting 60 HE
Brand: Wooting

keyboards decoded[ ONLINE ]

60%USB

Enable Rapid Trigger

Keys:Wootility → Rapid Trigger tab

Enable Rapid Trigger mode in Wootility software. When enabled, keys reset as soon as you release slightly, instead of waiting to pass the reset point. Dramatically improves input speed for gaming.

$ Press ESC or click here to go back

Wooting 60 HE Keyboard Shortcuts

Wooting 60 HE Rapid Trigger

Enable Rapid Trigger: Wootility → Rapid Trigger tab — Enable Rapid Trigger mode in Wootility software. When enabled, keys reset as soon as you release slightly, instead of waiting to pass the reset point. Dramatically improves input speed for gaming.
Adjust Rapid Trigger Sensitivity: Wootility → Rapid Trigger → Sensitivity slider — Set the actuation and reset distance for Rapid Trigger. Lower values (e.g. 0.1mm) mean faster response but may cause accidental inputs. Default is 0.4mm. Can be set per-key.
Custom Actuation Point: Wootility → Actuation Point slider — Set the actuation distance for each key individually, from 0.1mm to 4.0mm. Hall effect switches allow analog precision — no mechanical contact needed.

Wooting 60 HE Analog Input

Analog Gamepad Emulation: Wootility → Gamepad Mode — Map WASD or any keys to analog gamepad stick axes. Press lightly for slow movement, press harder for full speed. Emulates Xbox controller left/right stick.
Mod Tap (DKS): Wootility → Digital Key Stroke — Assign up to 4 different actions to a single key based on press depth: light tap, half press, full press, and release. Configure via Digital Key Stroke (DKS) in Wootility.

Wooting 60 HE Profiles

Switch Profile: Fn + 1/2/3/4 — Switch between up to 4 onboard profiles. Each profile stores independent key mappings, actuation points, Rapid Trigger settings, and RGB configurations.
Manage Profiles in Wootility: Wootility → Profile tab — Create, edit, and sync profiles in Wootility. Profiles are stored on the keyboard's onboard memory and persist without software running.

Wooting 60 HE Fn Layer

F1: Fn + 1 — Output F1 key. The 60% layout has no dedicated F-row; Fn + number row provides F1-F12.
F2: Fn + 2 — Output F2 key.
Backtick / Tilde: Fn + Esc — Output backtick (`) or tilde (~) with Shift. The Esc key doubles as `/~ in the Fn layer.
Arrow Keys: Fn + I/J/K/L — Use IJKL as arrow keys in the Fn layer. I=Up, J=Left, K=Down, L=Right. No dedicated arrow keys on 60% layout.
Delete: Fn + Backspace — Output Delete key. Backspace becomes Delete in the Fn layer.
Page Up: Fn + U — Output Page Up key.
Page Down: Fn + O — Output Page Down key.
Home: Fn + H — Output Home key.
End: Fn + N — Output End key.

Wooting 60 HE Lighting

Toggle RGB: Fn + Backslash — Turn the RGB backlight on or off.
Next RGB Effect: Fn + ] — Cycle through available RGB lighting effects.
Increase RGB Brightness: Fn + . — Increase the RGB backlight brightness.
Decrease RGB Brightness: Fn + , — Decrease the RGB backlight brightness.

Wooting 60 HE Special

Factory Reset: Wootility → Reset to Default — Reset all keyboard settings to factory defaults through Wootility software. Erases all profiles, custom actuation points, and Rapid Trigger configurations.
Firmware Update: Wootility → Firmware tab — Update keyboard firmware through Wootility. Firmware updates add new features like improved Rapid Trigger algorithms and new RGB effects.
Wootility Software: Connect USB → open Wootility — Download Wootility from wooting.io to configure all keyboard features. Settings are saved to onboard memory. Wootility is required for Rapid Trigger, analog input, and DKS configuration.
