How to arrow key gestures on Angry Miao Compact Touch?

Swipe on Touch Panel. Slide up/down/left/right on the glass touch panel to replace traditional arrow keys. The panel sits at thumb reach below the spacebar for ergonomic operation.

How to cycle in-switch led effects on Angry Miao Compact Touch?

Fn + /. Cycle through available in-switch LED lighting effects.

How to power on/off on Angry Miao Compact Touch?

Fn + Esc (hold 5s). Long press Fn+Esc for 5 seconds to toggle the keyboard power on or off.

Keymatrix.dev

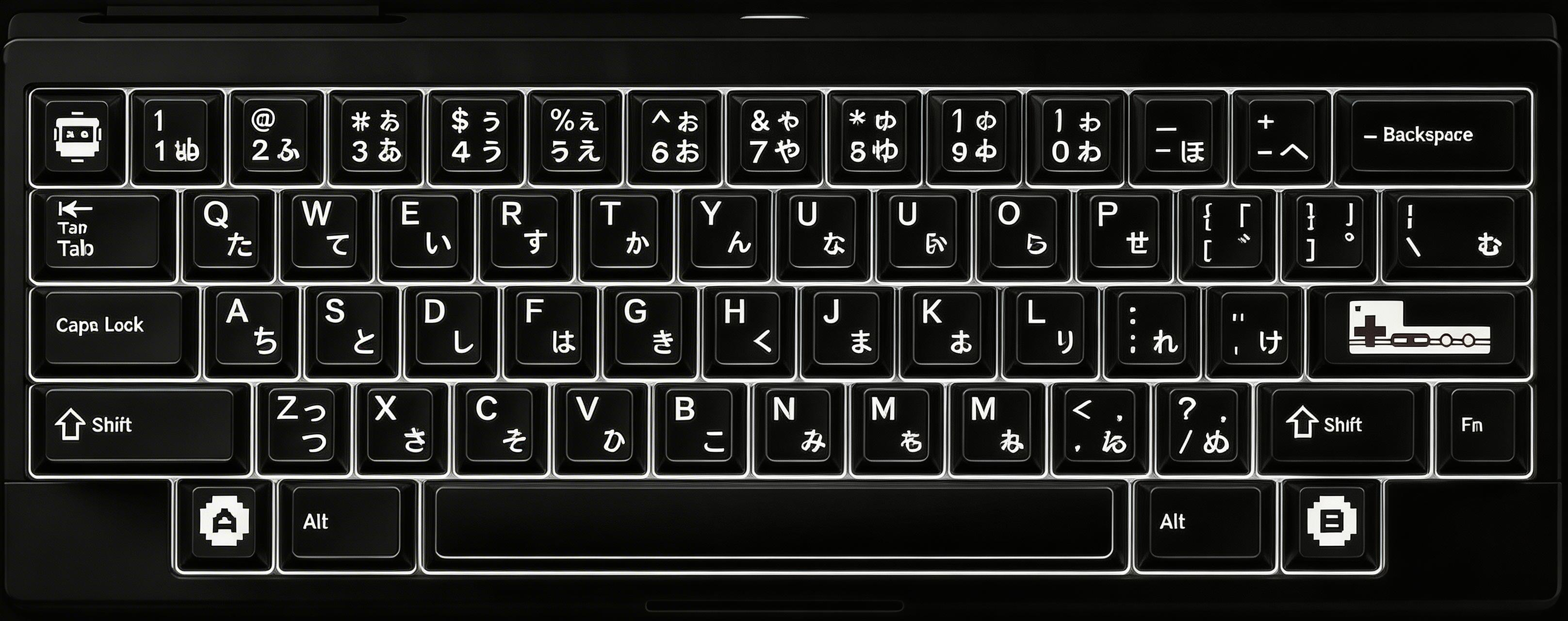

Name: Angry Miao Compact Touch
Brand: Angry Miao

keyboards decoded[ ONLINE ]

60%BT/USB/2.4G

Pair Device 1

Keys:Fn + Q (hold 3s)

Enter Bluetooth pairing mode for device slot 1. The Q key lights up white continuously while pairing. Corner RGB lights show white breathing effect for up to 60 seconds.

$ Press ESC or click here to go back

Angry Miao Compact Touch Keyboard Shortcuts

Angry Miao Compact Touch Bluetooth

Pair Device 1: Fn + Q (hold 3s) — Enter Bluetooth pairing mode for device slot 1. The Q key lights up white continuously while pairing. Corner RGB lights show white breathing effect for up to 60 seconds.
Pair Device 2: Fn + W (hold 3s) — Enter Bluetooth pairing mode for device slot 2. The W key lights up white continuously while pairing.
Pair Device 3: Fn + E (hold 3s) — Enter Bluetooth pairing mode for device slot 3. The E key lights up white continuously while pairing.
Switch Bluetooth Device: Fn + Q/W/E — Short press to switch between paired Bluetooth devices 1/2/3. Corner RGB lights flash white for 3 seconds, then turn blue on successful switch.

Angry Miao Compact Touch Touch Panel

Arrow Key Gestures: Swipe on Touch Panel — Slide up/down/left/right on the glass touch panel to replace traditional arrow keys. The panel sits at thumb reach below the spacebar for ergonomic operation.
Volume Control via Touch: Fn + Touch Panel (swipe up/down) — With Fn held, swipe up or down on the touch panel to increase or decrease system volume.
Media Scrub via Touch: Fn + Touch Panel (swipe left/right) — With Fn held, swipe and hold left or right on the touch panel to rewind or fast-forward media playback.

Angry Miao Compact Touch Lighting

Cycle In-Switch LED Effects: Fn + / — Cycle through available in-switch LED lighting effects.
Adjust In-Switch LED Brightness: Fn + Touch Panel (swipe left/right) — Swipe left or right on the touch panel while holding Fn to adjust in-switch LED brightness across 10 levels. The lowest level turns LEDs off.
Disable In-Switch LEDs: Fn + ] — Turn off all in-switch LED backlighting.
Adjust LED Effect Speed: Fn + Touch Panel (swipe up/down) — Swipe up or down on the touch panel while holding Fn to increase or decrease the LED lighting effect speed. Applies to both in-switch and corner RGB lights.
Change Corner RGB Color: Fn + Z — Cycle through available colors for the special edition corner RGB lighting.
Cycle Corner RGB Effects: Fn + X — Cycle through available lighting effects for the special edition corner RGB lights.
Adjust Corner RGB Brightness: Fn + < / > — Adjust the brightness of the special edition corner RGB lighting.
Disable Corner RGB: Fn + [ — Turn off the special edition corner RGB lighting.

Angry Miao Compact Touch Special

Power On/Off: Fn + Esc (hold 5s) — Long press Fn+Esc for 5 seconds to toggle the keyboard power on or off.
Check Battery Level: Fn + P — Display battery level via number row LEDs. Shows percentage in 10% increments: green (70-100%), yellow-green (50-70%), orange (30-50%), red flashing (10-20%), red flashing with corner RGB (<10%).
Factory Reset: Fn + R (hold 5s) — Restore keyboard to factory default settings. Hold for 5 seconds to confirm.
Auto Wired/Wireless Switch: Plug/unplug USB — The keyboard automatically switches between wired and Bluetooth/2.4G modes when the USB cable is plugged in or removed. No manual toggle or physical switch needed.
Key Remapping via DIY: diy.angrymiao.com — All keys support remapping and multimedia key assignment via the Angry Miao DIY web configurator, supporting up to 7 layers.
